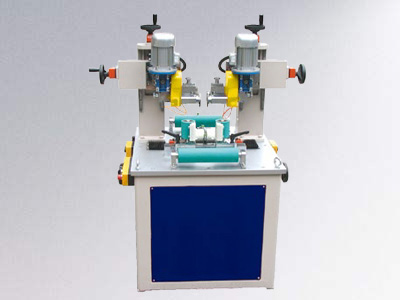

JYT.G240
|
Model |
JYT.G240 |
|
| Profile Cross Section (Maximum) |
240 × 180 mm |
|
| Feeding Speed |
0 ～ 80 m/min |
|
|
Diameter of Reamer |
Φ80 mm |
|
| Adjustable Range of Reamer |
Height |
0 ～ 180 mm |
|
Width |
0 ～ 240 mm | |
|
Air Pressure |
0.6 MPa |
|
|
Total Power |
1.50 kW |
|
|
Voltage |
380 V |
|
|
Dimension (L*W*H) |
1280 × 840 × 1510 mm |
|
|
Weight |
680 kg Approx. |
|
NOTES: Customized design according to customers’ demand. These parameters are for conventional configuration. The actual parameters of the equipment are subject to the ex- factory products. Please provide clear indication in the contract for any special requirements.
JYT.G300
|
Model |
JYT.G300 |
| Profile Cross Section (Maximum) |
400 × 300 mm |
| Feeding Speed |
0 ～ 80 m/min |
|
Diameter of Reamer |
Φ80 mm |
| Adjustable Range of Reamer |
Height：0 ～ 300 mm Width：0 ～ 400 mm |
|
Air Pressure |
0.6 MPa |
|
Total Power |
1.55 kW |
|
Voltage |
380 V |
|
Dimension (L*W*H) |
1470 × 900 × 1660 mm |
|
Weight |
800 kg Approx. |
NOTES: Customized design according to customers’ demand. These parameters are for conventional configuration. The actual parameters of the equipment are subject to the ex- factory products. Please provide clear indication in the contract for any special requirements.
