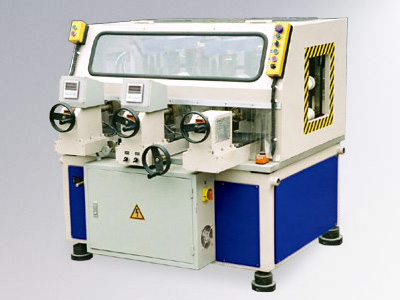

JYT.R300
|
Model |
JYT.R300 |
|
| Profile Cross Section (Maximum) |
300 × 300 mm |
|
|
Feeding Speed (Speed-regulating by Frequency Conversion and Stepless Control) |
0 ～ 70 m/min |
|
|
Diameter of Reamer |
Φ220 mm |
|
|
Adjustable Range of Roller |
Height |
0 ～ 50 mm |
|
Width |
0 ～ 240 mm |
|
|
Total Power |
2.95 kW |
|
|
Voltage |
380 V |
|
|
Dimension (L*W*H) |
1440 × 1440 × 1400 mm |
|
|
Weight |
1500 kg Approx. |
|
NOTES: Customized design according to customers’ demand. These parameters are for conventional configuration. The actual parameters of the equipment are subject to the ex- factory products. Please provide clear indication in the contract for any special requirements.
JYT.R500
|
Model |
JYT.R500 |
|
| Profile Cross Section (Maximum) |
400 × 500 mm |
|
|
Feeding Speed (Speed-regulating by Frequency Conversion and Stepless Control) |
0 ～ 60 m/min |
|
|
Diameter of Reamer |
Φ300 mm |
|
| Adjustable Range of Roller |
Height |
0 ～ 50 mm |
|
Width |
0 ～ 300 mm |
|
|
Total Power |
5.31 kW |
|
|
Voltage |
380 V |
|
|
Dimension (L*W*H) |
1600 × 1620 × 1900 mm |
|
|
Weight |
2800 kg Approx. |
|
NOTES: Customized design according to customers’ demand. These parameters are for conventional configuration. The actual parameters of the equipment are subject to the ex- factory products. Please provide clear indication in the contract for any special requirements.
